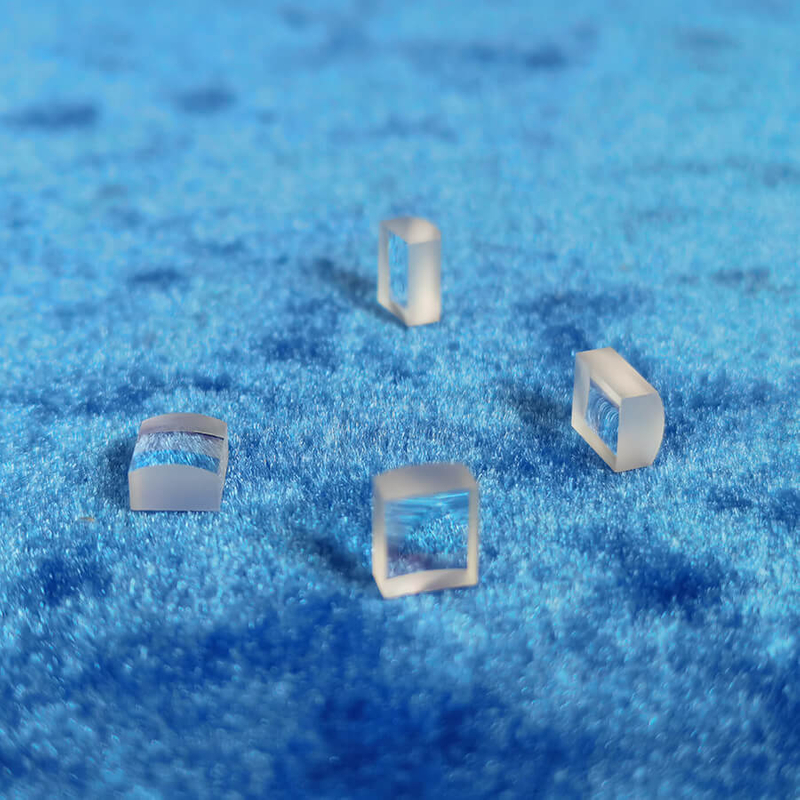

Plano-Convex Cylindrical lenses are similar to Plano-Convex lenses in profile, but include a portion of a cylinder instead of a sphere. These lenses focus light in one dimension and can transform a point of light into a line. Plano-Convex Cylindrical lenses are available in circular and rectangular versions, along with multiple coating options. Cylinder lenses are ideal for line projection in machine vision applications or guidance systems.
Substrate | BK7,Fused Silica |
Dimension(mm) | 3*3~100*500 |
Diameter Tolerance(mm) | +0.00/-0.02 |
Focus Length Tolerance(%) | +/-2% |
Centration(arc min) | <3 |
Irregularity (P-V) @ 632.8nm | 1/4 |
Power (P-V) @ 632.8nm | λ |
Surface Quality(scratch/dig) | 40-20 |
Bevel | Protective bevel as needed |
Coating | As request |
Plano-Convex Cylindrical lenses are similar to Plano-Convex lenses in profile, but include a portion of a cylinder instead of a sphere. These lenses focus light in one dimension and can transform a point of light into a line. Plano-Convex Cylindrical lenses are available in circular and rectangular versions, along with multiple coating options. Cylinder lenses are ideal for line projection in machine vision applications or guidance systems.
Substrate | BK7,Fused Silica |
Dimension(mm) | 3*3~100*500 |
Diameter Tolerance(mm) | +0.00/-0.02 |
Focus Length Tolerance(%) | +/-2% |
Centration(arc min) | <3 |
Irregularity (P-V) @ 632.8nm | 1/4 |
Power (P-V) @ 632.8nm | λ |
Surface Quality(scratch/dig) | 40-20 |
Bevel | Protective bevel as needed |
Coating | As request |
